MiGaL Tutorial: Example 2, building phylogenetic trees

This example shows how to compute the scoring matrix for a set of structures and to build a phylogenetic tree with the phylip neighbor joining method.

The data

For this example, we take 6 16S rRNA from The Comparative RNA Web Site. You can download these structures here. Uncompress the data in a directory using tar -zxf 16S.tgz.

Compute the matrices

To compute the scoring matrices, we use the python script phylo_nj.py available in the directory tools of the migal archive. This program runs all comparisons to build the matrices.

First, we have the problem that structures contains pseudo-knots. So, for each comparison we have to tell to migal how to remove pseudo-knots in the two RNAs involved in the comparison: there are 15 comparisons!!!

To solve this problem, we have two solutions:

• Convert structures in xml using rnaconverter. This can be done by using the command for i in *bpseq; do rnaconverter -f bpseq $i -i -o $i.xml; done;
• Tell migal to automatically break helices to remove pseudo-knots. This is done by using the option -o "--auto-psdk" with phylo_nj.py.

We suppose that we have converted all bpseq files using rnaconverter so we have 6 xml files now. Then the command phylo_nj.py *xml creates 8 matrices in the files Layer0, Layer1, Layer2, Layer3 and Layer0NORM, Layer1NORM, Layer2NORM, Layer3NORM. Each file contains the scoring matrix for one level (0 to 3). The Layer?NORM corresponds to the normalized score (see the program description). The file Layer3NORM should be:
6
d.16.a.A.p 0.0000 0.0550 0.1636 0.1567 0.2910 0.2765
d.16.a.P.a 0.0550 0.0000 0.1543 0.1473 0.2841 0.2860
d.16.b.B.s 0.1636 0.1543 0.0000 0.0731 0.3141 0.3138
d.16.b.T.m 0.1567 0.1473 0.0731 0.0000 0.3122 0.3153
d.16.e.H.s 0.2910 0.2841 0.3141 0.3122 0.0000 0.0254
d.16.e.M.m 0.2765 0.2860 0.3138 0.3153 0.0254 0.0000

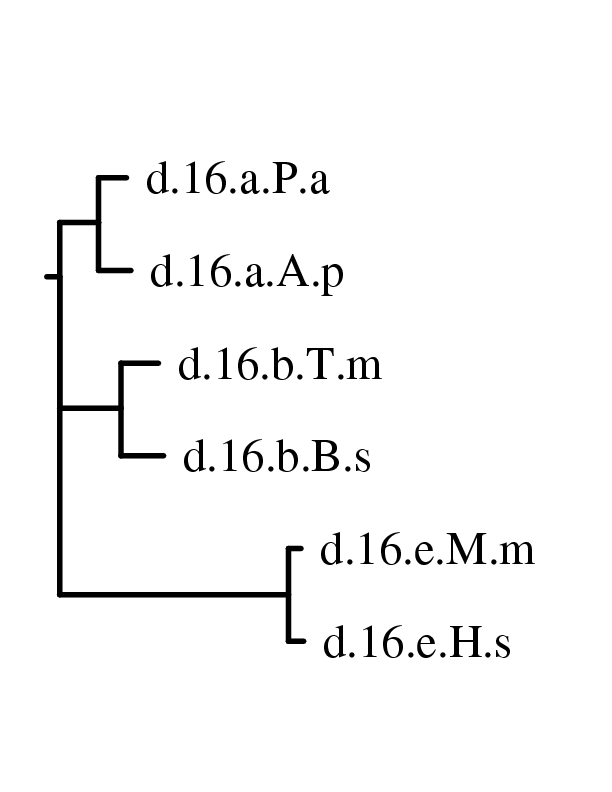

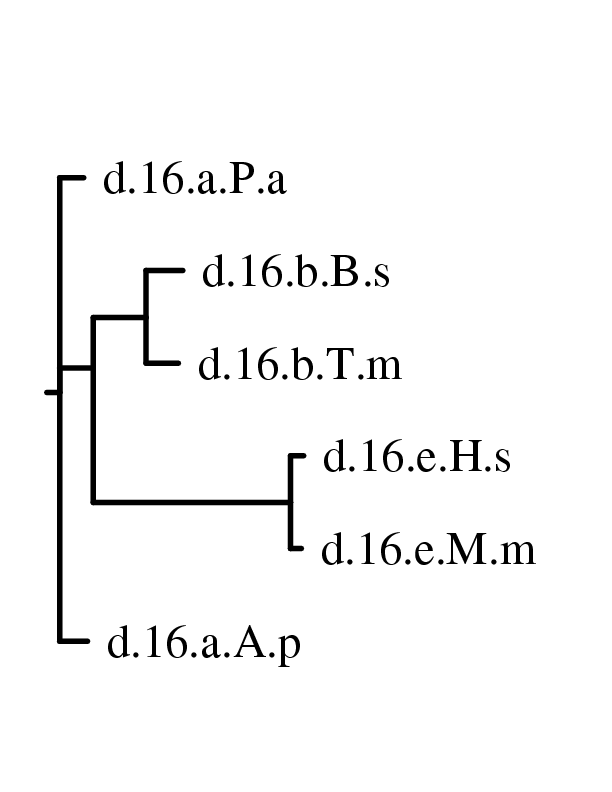

Now one can use these matrices to build a phylogenetic tree using the neighbor joining method. If you plans to use phylip then phylo_nj can compute the trees. The command phylo_nj.py --phylip *xml creates 8 postscripts that correspond to the tree obtained for each matrix by neighbor joining. If one has quicktree installed, one can ask to compute the tree with quicktree instead of phylip with the option --quicktree. The most significant tree is the one built with Layer3NORM, on the left the tree built with phylip nj method and on the right the one built with quicktree:

Now, if you want to have the alignment resulting from each comparison, you have to use the option -d. This option will create a directory for each comparison and run migal in the directory. Thus the command phylo_nj.py -d -o "-a align" *xml creates 15 directories. The directory d.16.e.H.sapiens.bpseq_vs_d.16.e.M.musculus.bpseq contains this alignement.

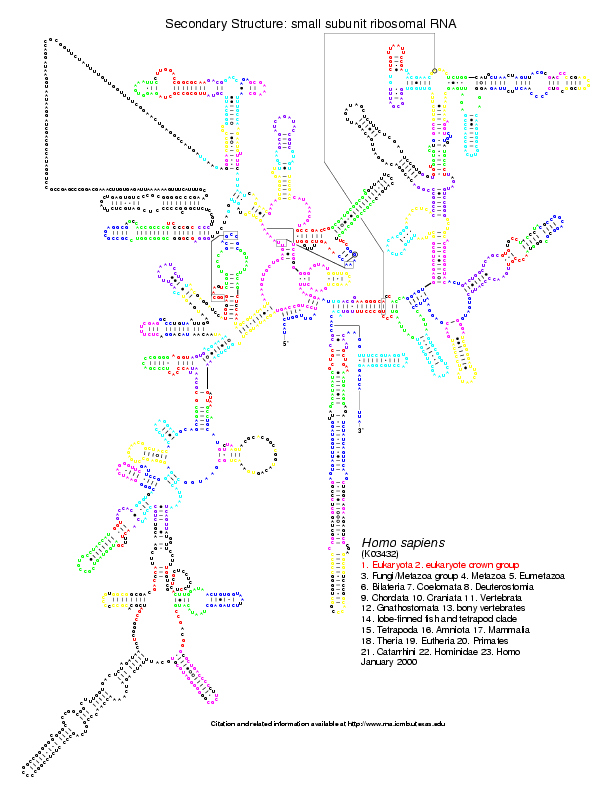

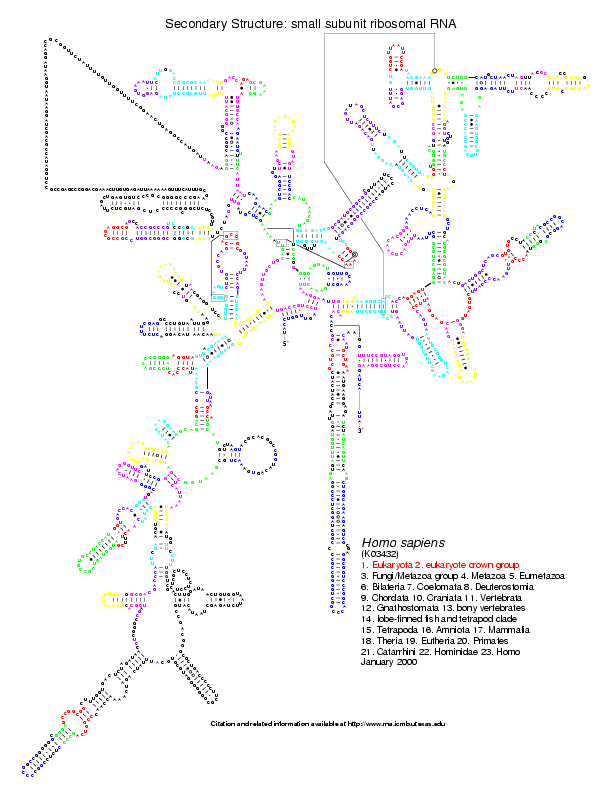

Finally, the script phylo_nj.py can also deal with a postscript file (only format supported by migal). The option -p indicates to use postscripts if available. If the postscript files corresponding to sapiens and musculus are put in the directory and the command phylo_nj.py -p *xml is run, we obtain 15 directories. In the directories that correspond to a comparison which involved mouse or human, we have the coloured version of the postscripts. Below is the Homo sapiens 16S coloured from the comparison with Aeropyrum pernix (on the left) and Bacillus subtilis (on the right):

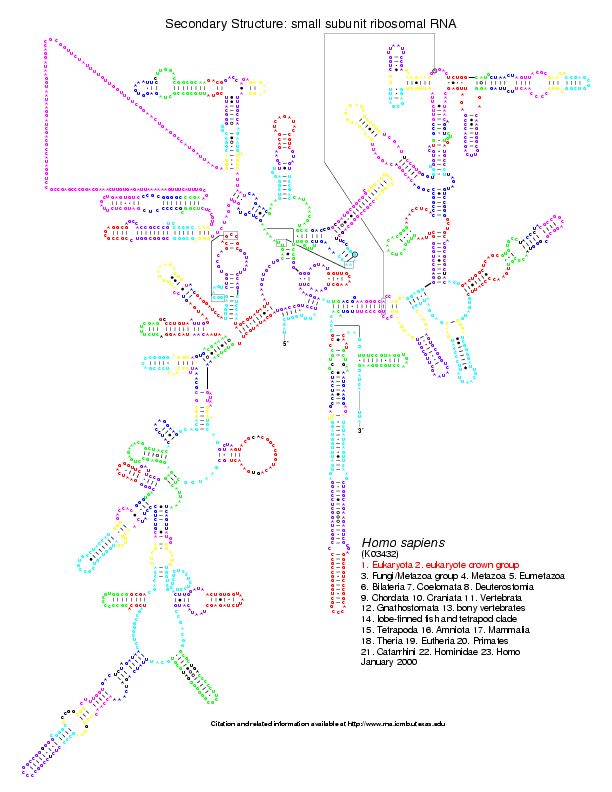

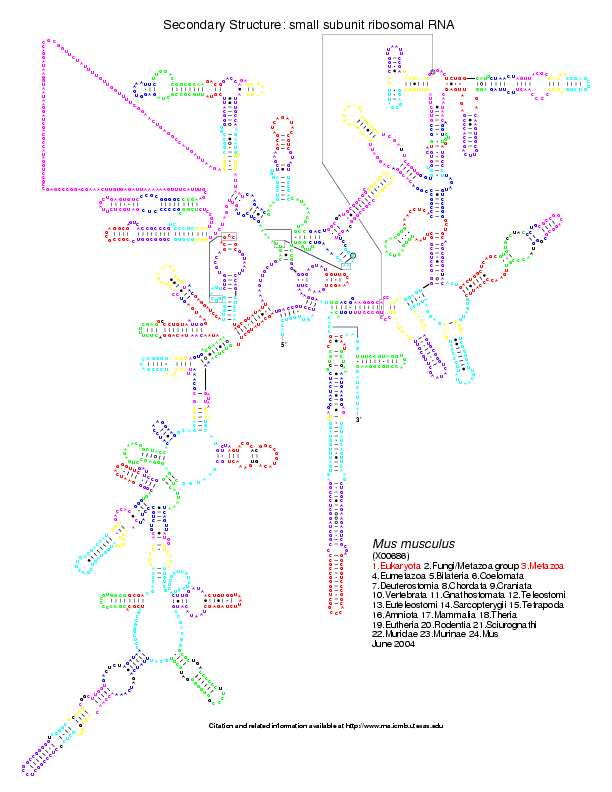

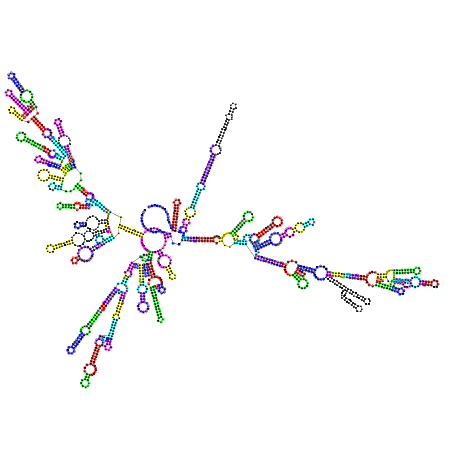

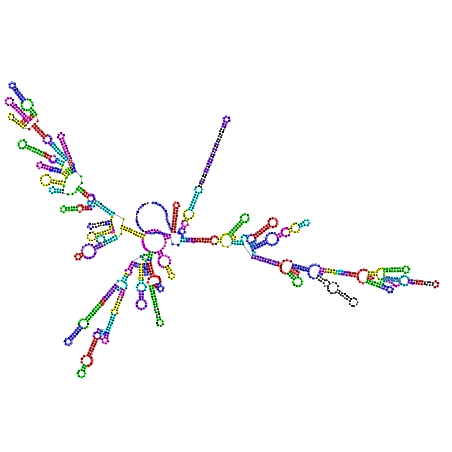

Below the postscripts resulting from the comparison of homo sapiens and musculus: The last option is --rnaplot which tells to phylo_nj.py to compute missing postscripts with RNAplot(Vienna package). The command phylo_nj.py --rnaplot *xml builds four postscripts (for pernix, abyssi, subtilis and maritima) and all directories contain two postscripts. Below the files in d.16.a.P.abyssi.bpseq_vs_d.16.b.T.maritima.GEN.bpseq:

Creating an HTML table

The options --html-rel and --html-abs allow to create an html file that contains a summary of the job run (include picture, links to directory, alignments...). In our example, the command phylo_nj.py --html-rel --rnaplot -o "-a align" *xml produces this page.
