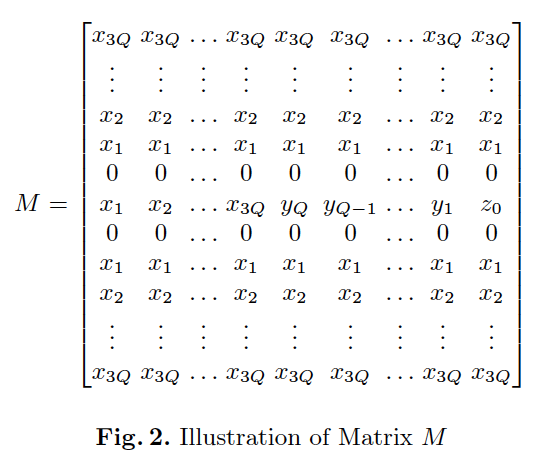

Illustration of the matrix M

Illustration of the rounding technique

Let us present the rounding technique for a single row - say the k^th. Considering all the corresponding variables {H^k_ij| 1 ≤ i ≤ j ≤ m }, one can represent each non-null variable H^k_ij by an interval [i,j] over the real line on [1,m] weighted by H^k_ij.

Let us transform this set of intervals I into a set I', where given any pair of intervals either one is included into the other or they are disjoint. To do so, we process I with the following algorithm. While there exists two intervals [i,j] and [k,l] with respective weights w₁ and w₂ such that i<k<j<l (i.e. crossing) remove [i,j] and [k,l] from I and add [i,k-1], [k,j] and [j+1,l] with respective weights w₁, w₁+w₂ and w₂.

As an example, considering Figure 3, given intervals [1,9] and [3,11], it will result in intervals [1,2], [3,9] and [10,11] with respectively weights H^k_1,9, H^k_1,9+H^k_3,11 and H^k_3,11. Now that all intervals are nested or independent, while there exists three intervals [x,y], [i,j] and [k,l] with respective weights w₁, w₂ and w₃ such that x≤ i<j ≤ k<l≤ y, if j<k then remove [x,y] from I and add [x,j] and [j+1,y] both weighted by w₁; otherwise (j=k) remove [i,j] and [k,l] from I and if w₂< w₃ then add [i,l] and [k,l] with respective weights w₂ and w₃-w₂; otherwise add [i,l] and [i,j] with respective weights w₃ and w₂-w₃.

As an example, given intervals [3,9], [4,7] and [9,9], it will result in intervals [3,7], [8,9], [4,7] and [9,9]. Moreover given two copies of an interval [i,j] with respective weights w₁ and w₂, remove them and add an interval [i,j] with weight w₁+w₂. As an example, copies of intervals [1,2], [3,7] and [8,9] have been merged.

MOD Hardness instance generator

This form allows you to build a sample instance for the hardness proof of "Towards unlocking the full potential of Multileaf Collimators" by G. Blin, P. Morel, R. Rizzi and S. Vialette.
